Products Detail

Home Coffee Retort Autoclave Coffee Retort Autoclave

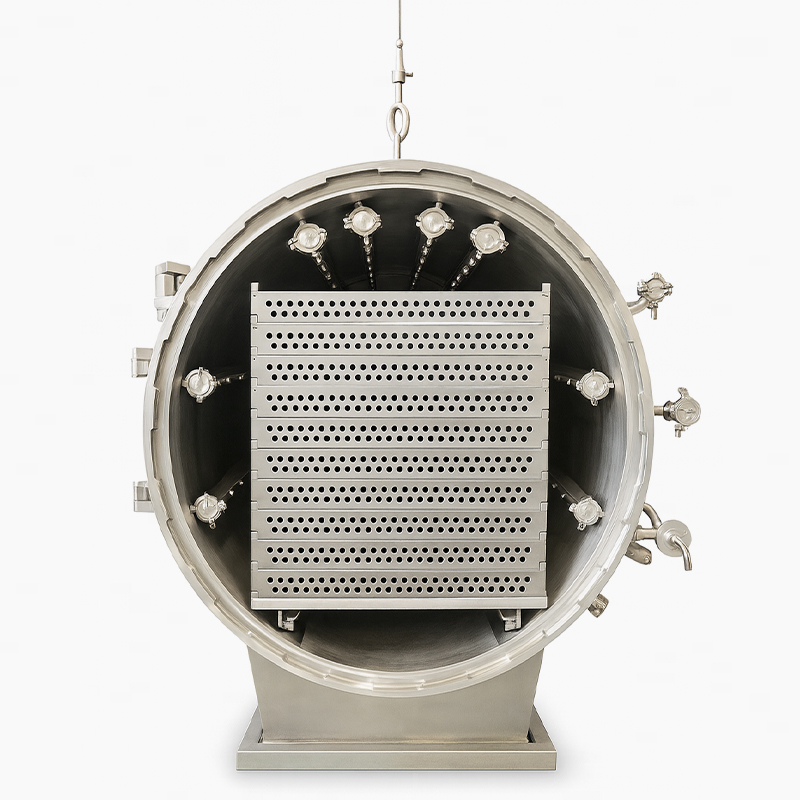

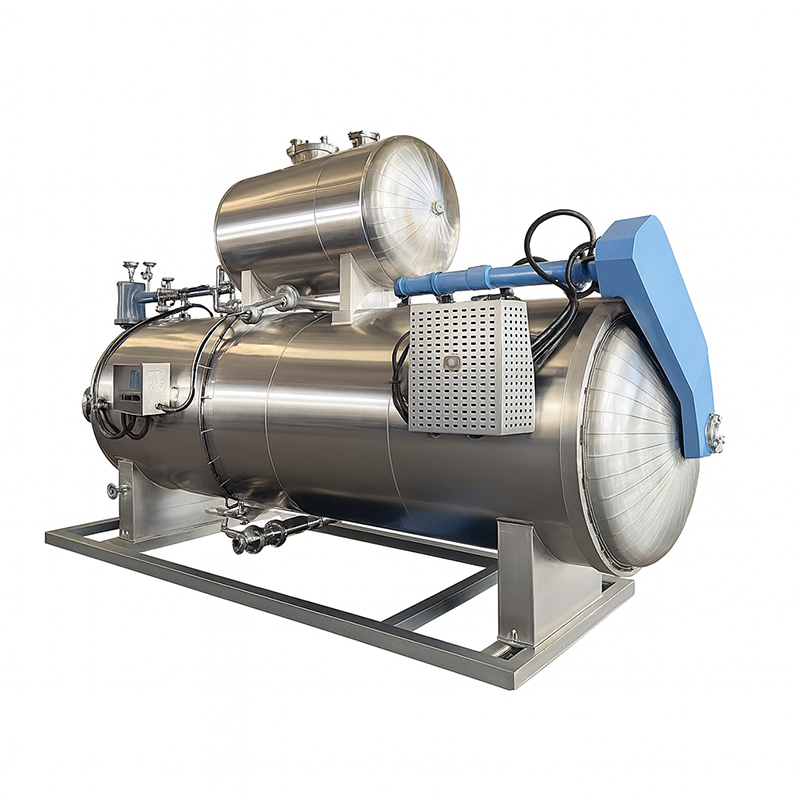

Coffee Retort Autoclave

High temperature sterilization: Water retort machine is capable of reaching the high temperatures required for sterilization. It ensures that both the containers and the contents are fully sterilized and meet regulatory and safety standards.

Smart PLC control: The existence of programmable logic controller (PLC) indicates that the autoclave is equipped with intelligent automatic functions, allowing it to work in a more advanced and efficient way.

One-button start: One button start function simplifies the operation process of the Water Spray retort machine. Thus making it more user-friendly and efficient for the operator.

库存： 0

Inquire

Add to Basket

Features

Coffee Retort Autoclave by ZLPH Machinery: 5 Key Innovations That Redefine Commercial Sterilization

Only a limited amount of the sterilization water is circulated rapidly to provide sterilization, heating and cooling. There is no exhaust required before heating which provide low noise and save the steam energy.

Parameter

Specifications	Tray size (mm)	Basket size (mm)	Power kW	Volume m3	Floor area(length/width/height mm
DN700x1200	1140x420x420	540x380x420	2.2	0.55	2700x1500x1700
DN900x1800	890x560x600	560x560x560	4	1.32	3000x1600x2100
DN1000x2400	790x630x650	700x605x620	4	2.12	4000x1800x2500
DN1200x3600	890x800x800	850x780x780	7.5	4.46	6000x2000x2800
DN1400x4500	1100x930x900	1050x900x900	11	7.23	7000x2500x3100
DN1500x5250	1030x970x970	1000x1000x970	15	10.02	7700x2700x3300
DN1600x6500	1220x1050x1050	1010x1050x1050	18	13.97	8500x3100x3000
DN1800x7500	1180x1180x1160	1180x1180x1160	22	19.72	9800x3100x3500

1. KEEPING COFFEE FLAVOR INTACT WITH PRECISE HEAT CONTROL

Our coffee-specific autoclave has advanced multi-zone heating tech. It keeps temperatures within ±0.3°C. Short heat times, fast heating and cooling, cut down on the threat of heat by 30%. This keeps 98% of caffeine and 95% of volatile scents in your coffee. Once it’s through Commercial Sterilization, your RTD, concentrate, or specialty brew will still have its real taste.

2. ZLPH’S PATENTED STEAM-AIR MIXING TECH

All our food retort machines use a patented 3D circulation system (Patent: ZL202310XXXXXX). It fine-tunes the steam-air ratio to near-perfect heat transfer (99.2%). This feature is designed for coffee-cream blends and stops fat separation and protein denaturation, which are common with traditional retort canning machine.

3. VARIABLE PRESSURE ADJUSTMENT TO PROTECT THE PACKAGE

The autoclave’s smart pressure compensation keeps the package pressure and chamber difference ≤0.05MPa. It’s been tested on production lines with Starbucks and Nestlé, reducing package failure to <0.02%, and keeping seal integrity perfect.

4. ENVIRONMENTALLY FRIENDLY & ENERGY-SAVING DESIGN

Heat recovery rate: ≥85%

Water use: 60% less than the traditional immersion method

Smart energy management: ~25% annual operating cost reduction

5. FLEXIBLE MULTI-FORMAT PACKAGING

Our modular retort machine designs allow rapid changeovers (<15 minutes).

PROVEN PERFORMANCE: CASE STUDY

Client: Popular Southeast Asian coffee brand

Challenge: 6 month shelf life with obvious loss of flavor

Solution: ZLPH RTC-8000 coffee retort autoclave

Outcomes:

18 month shelf life

67% decrease in customer complaints

40% increase in annual production capacity to 8.5 million cans

FDA, CE and ISO 22000 approvals

SMART CONTROL & MONITORING

12 preset coffee sterilization programs on a 7-inch color Touch Screen

Monitoring of F0, CUT and PU values in real-time

Traceability of 5 years of production data

ZLPH Cloud enables remote monitoring

AUTOMATED MAINTENANCE SYSTEM

133 possible fault types enables self-diagnosis

Predictive maintenance

Monitoring of pump, valves and sensors lifespan
