Instant Bird's Nest Retort Autoclave

Instant Bird's Nest Retort Autoclave Machine with Precise Temperature Control

Bird's nest is a premium product, so a failed batch costs real money. A good retort protects the texture and clarity of the strands, and it protects your margin.

This machine is built around four ideas: easy operation, steady water flow, tight temperature control and reliable sensing. Each one removes a common source of batch-to-batch differences.

Warlter Packaging, based in Xuzhou, has made glass jars, metal lids, retort machines and capping machines since 2014. Bird's nest brands can buy the jar, lid, capper and retort from one maker. Other foods are covered by our wider food retort machines range.

Bird's Nest Retort Autoclave at a Glance

What Is an Instant Bird's Nest Retort Autoclave?

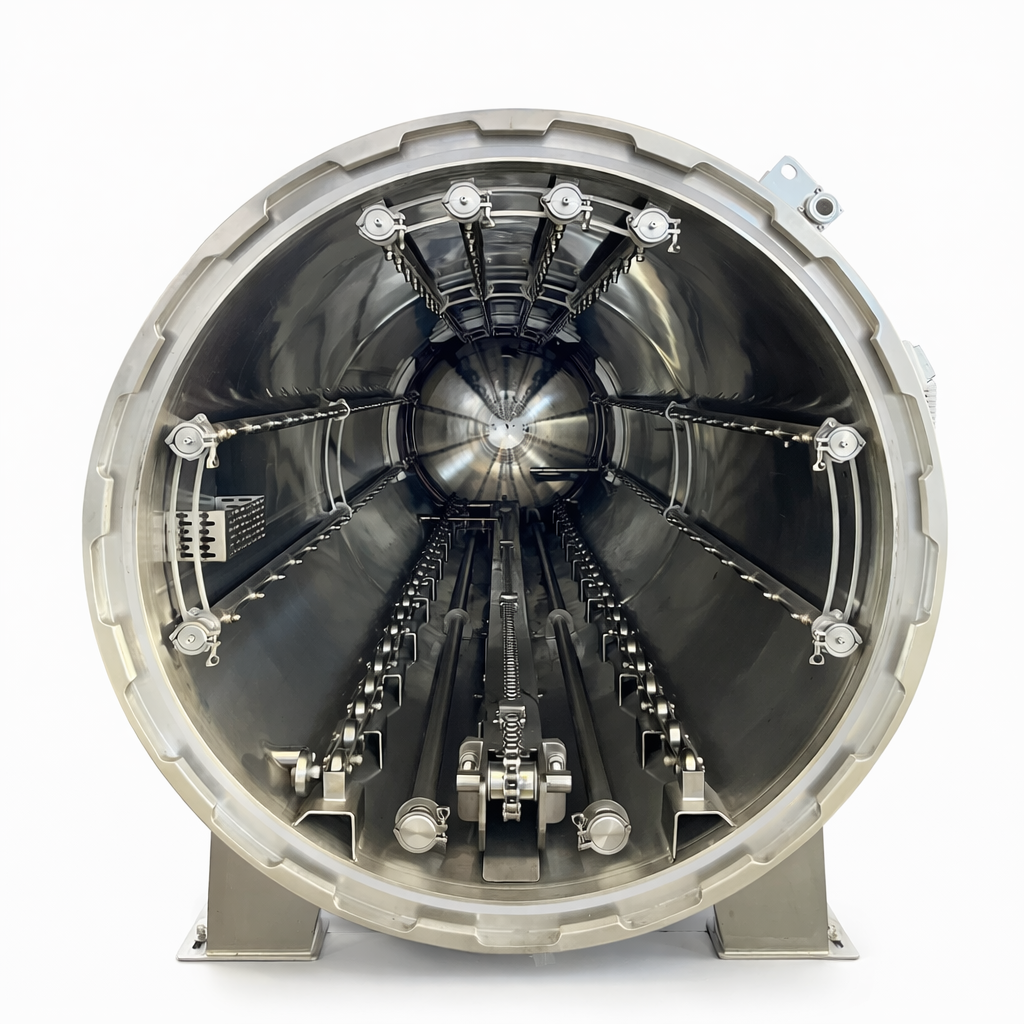

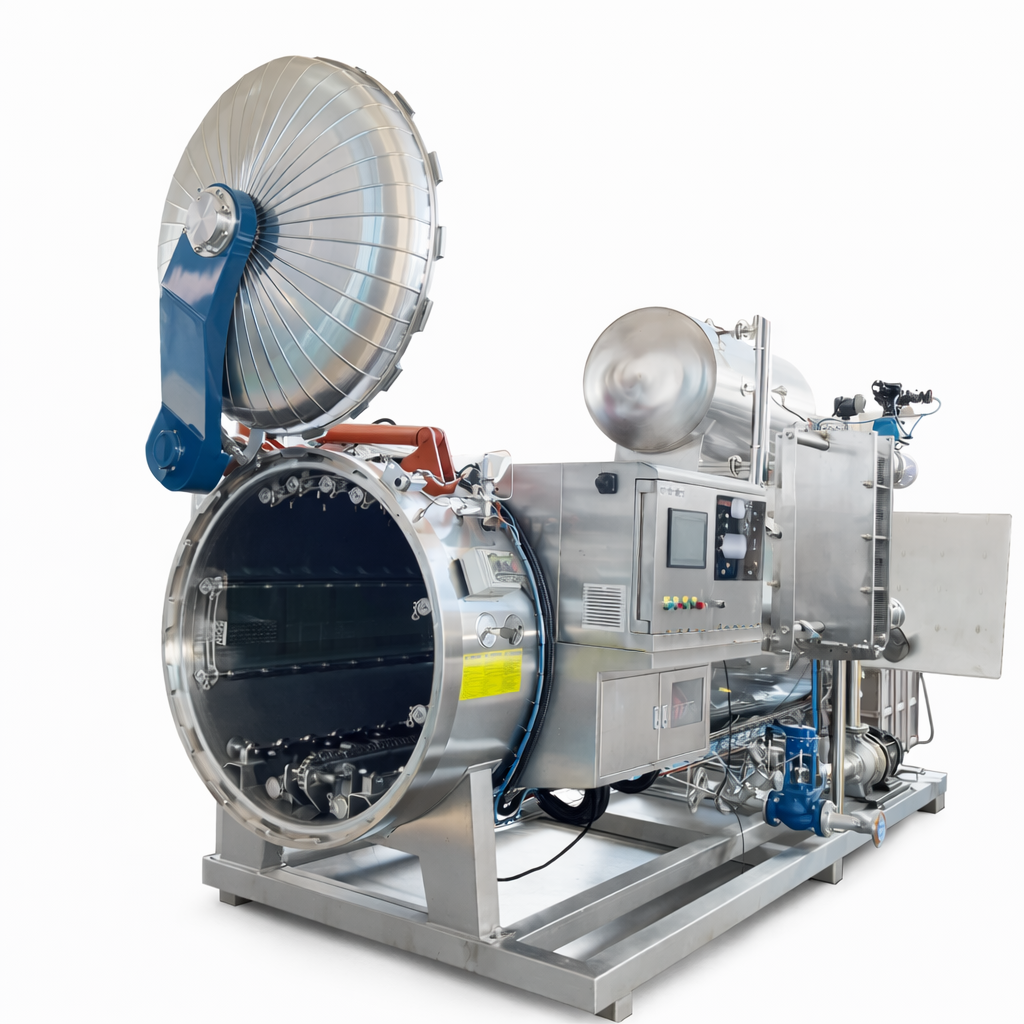

A retort autoclave is a sealed steel vessel that sterilizes packaged food with heat and pressure. The instant Bird's nest version is set up for ready-to-eat bird’s nest that is already filled and sealed in its bottle or jar.

Because the pack is closed before it goes in, the heat treatment reaches the food inside the container. Nothing can enter after sterilization, so the product stays safe until the customer opens it.

“Instant” means the customer can open the bottle and enjoy it right away. A properly validated retort process is what gives sealed bird's nest its long shelf life without refrigeration.

Why Does Instant Bird's Nest Need Retort Sterilization?

Bird's nest is rich in protein and holds a lot of water, so bacteria can grow in it if it is not treated. Brands also want to avoid preservatives, because the product sells on purity.

Heat sterilization in the sealed pack solves both problems. It destroys microorganisms and lets you keep the recipe clean. A short, tightly controlled process helps the strands keep their shape and the liquid stay clear.

This is why temperature accuracy and steady circulation matter so much for this product. A process that overshoots can cloud the liquid. A process that undershoots can leave the batch unsafe.

Key Features of the Warlter Bird's Nest Retort

Smart PLC Management with Single-Button Activation

A smart PLC runs the whole cycle. The operator selects the recipe and starts the batch with a single button. The controller then handles heating, holding and cooling on its own.

This reduces operator error. It also means new staff can run the machine after short training, and every batch follows the same program.

Removable Filter and Flow Monitoring for Steady Water Circulation

The machine uses a high-capacity removable filter to keep the circulating water clean. A flow monitoring instrument watches the circulation and helps keep it steady throughout the cycle.

Steady circulation spreads heat evenly across every basket. A removable filter is also easy to take out and clean between batches, which keeps the system running well.

Linear Temperature Control with ±0.3 °C Accuracy

Heating is controlled in a linear manner, so the temperature rises along a smooth, planned curve. The control accuracy is ±0.3 °C, and the design follows FDA 21 CFR requirements.

A smooth rise is gentler on glass and on the product. Tight accuracy keeps each batch close to the validated process, which is the heart of consistent quality.

Twin-Piece Sensing for Temperature and Pressure

The essential sensing system, covering temperature and pressure, uses a twin-piece design. Paired sensors let the controller cross-check readings, which adds a layer of confidence to every batch.

Pressure matters as much as temperature with glass bottles. Reliable pressure readings help the controller hold the right pressure during heating and cooling.

How Does the Retort Work?

Every cycle follows the same stages. The PLC runs them automatically:

Throughout the cycle, the flow monitor, temperature sensors and pressure sensors report to the PLC. If a reading drifts, the controller can respond or raise an alarm.

Why Does Steady Water Circulation Matter?

In a water-based retort, circulating water carries heat to the packs. If the flow is uneven, some bottles heat faster than others. The result is a batch with mixed treatment.

The flow monitoring instrument in this machine watches circulation and helps keep it steady. The removable filter protects the circulation path from debris, so flow does not fall as the machine gets dirty.

For brands, the payoff is simple. Bottles in the corner of a basket receive the same treatment as bottles in the center, which means fewer rejected batches.

Why Does ±0.3 °C Accuracy Matter?

Bird's nest recipes are often processed close to their target conditions. If the actual temperature wanders, you either risk under-processing or over-cooking the product.

With ±0.3 °C accuracy, the real temperature stays close to the set point. This makes it easier to repeat a validated process and to prove that you did.

Tight control also helps product quality. Strands keep their shape, the liquid stays clear and the taste stays clean.

Bird's Nest Retort Models and Specifications

The retort comes in eight sizes. Model names show the vessel diameter and length in millimetres. This table lists each model:

Tray and basket sizes can be matched to your bottle or jar. Tell us your container size, and we will confirm how many packs each basket holds.

How to Choose the Right Retort Size

The smallest model is a good fit for trials and small batches. The largest model suits high-volume plants. This table gives a rough guide:

Size alone does not decide the choice. Container size, cycle time, number of products and floor space all matter. Two smaller retorts can give more flexibility than one large one.

Planning Your Floor Space

The floor area column in the specification table shows the length, width and height of the space each model needs. The smallest model needs about 2.7 by 1.5 metres, and the largest needs about 9.8 by 3.1 metres.

Remember to leave room around the machine. You need space to load trays, move baskets and reach the filter for cleaning. Also check door heights and ceiling clearance for the model you choose.

• Allow loading space. Trays and baskets need a clear path in and out.

• Keep filter access. The removable filter should be easy to reach.

• Check the floor. A full vessel is heavy, so confirm the floor load.

• Plan the utilities. Bring steam, water, air and power to the right place.

Containers and Loading

Glass bottles and jars are the most common choice for instant bird's nest, because customers can see the product. Warlter supplies glass jars, including bird's nest glass jars, and easy-open twist-off metal lids.

Bottle size, glass thickness and lid type all affect the cycle. Share your container details early, so the baskets and the process are matched.

Water-Based Retorts Compared with Other Types

Retorts differ in how they carry heat to the pack. This table puts the main types side by side:

Many instant bird's nest drinks are thin, so a circulating water retort with steady flow can heat them evenly without rotation. Thicker recipes may benefit from a different design. Tell us your recipe, and we will advise.

Where the Retort Fits in Bird's Nest Production

The retort is one step in a longer process. This table shows the usual order:

If you use vacuum caps, our steam vacuum capping machine can seal bottles and jars before they enter the retort. A complete factory layout is shown on our canned food production line page.

Other Foods You Can Sterilize in the Same Retort

A retort often serves more than one product. Foods that suit retort treatment include:

• Ready-to-eat porridge and soups

• Sauces and seasonings in glass jars

• Baby food and prepared meals in jars

• Fruit and vegetable products

• Other premium drinks and desserts in sealed bottles

Each product needs its own validated process. Tell us your plans, and we will check that the retort suits them.

Common Retort Problems and How to Avoid Them

Utilities to Prepare Before Installation

Before delivery, your plant must supply a few services. The table below lists them:

Demand grows with model size. Exact figures come with your quotation.

Food Safety and Process Validation

Sterilization protects consumers, so the process has to be proven, not assumed. Your recipe, container and product thickness set the right temperature and time.

The machine is designed with FDA 21 CFR requirements in mind, and its accurate temperature control and sensing support that work. Even so, your own food safety specialist should set and verify the heat process for your product under the rules of your market.

How to Choose a Bird's Nest Retort Autoclave

Ask these questions before you buy:

1. What is your product? Note whether it is thin, syrupy or contains strands.

2. Which container? Glass bottle, glass jar or another pack.

3. How much per batch? Decide the packs per cycle you need.

4. How accurate is the control? Ask for the temperature accuracy and the sensing design.

5. How is circulation managed? Look for flow monitoring and an easy-to-clean filter.

6. How simple is operation? Check for recipe control and one-button start.

7. What is it made of? Product-contact parts should be food-grade stainless steel.

8. What support follows the sale? Ask what is included after delivery.

Customization and Plant Layout

Retorts are not one-size products. Trays, baskets and loading methods can be adapted to your bottle and your factory space.

Tell us the room you have, the door height and where the utilities enter. We can plan the retort so it fits and so that loading and unloading flow smoothly.

If you already own a filler, capper or labeler, we can plan the retort to work with them.

Installation and After-Sales Support

Because a retort is a pressure vessel, installation and operator training must be done right. Your proposal can include installation, training, spares and maintenance.

Tell us your plant location and planned start date, and we will build the schedule together.

Why Choose Warlter for Your Bird's Nest Retort?

Warlter combines container knowledge and machine knowledge in one company.

• Jar, lid, capper and retort from one maker. The parts are designed to work together.

• Experience with glass. We make glass jars and bottles, so we understand how glass behaves under heat and pressure.

• Eight sizes. From 0.55 to 19.72 m³, so you can start small and grow.

• Clear communication. We share specifications, utilities and delivery steps in the quotation.

• Export ready. We ship to food and beverage producers in other countries.

Ask us for the catalog and certification files.

What to Send for a Quote

These details help us choose the right model:

• Your product and whether it is thin, syrupy or contains strands

• Bottle or jar type, size and glass thickness

• Packs per day or per batch

• Your heat process, if you already have one

• Floor space and door height

• Steam, water, air and power available

• Your country and planned start date
