With the rotation, food is kept evenly spread during sterilization, preventing issues like excessive heat in some areas or inadequate heating, which assures complete and effective sterilization. This design significantly reduces processing time for food while enhancing the efficiency and quality of sterilization, positioning it as a vital technological asset in food processing.

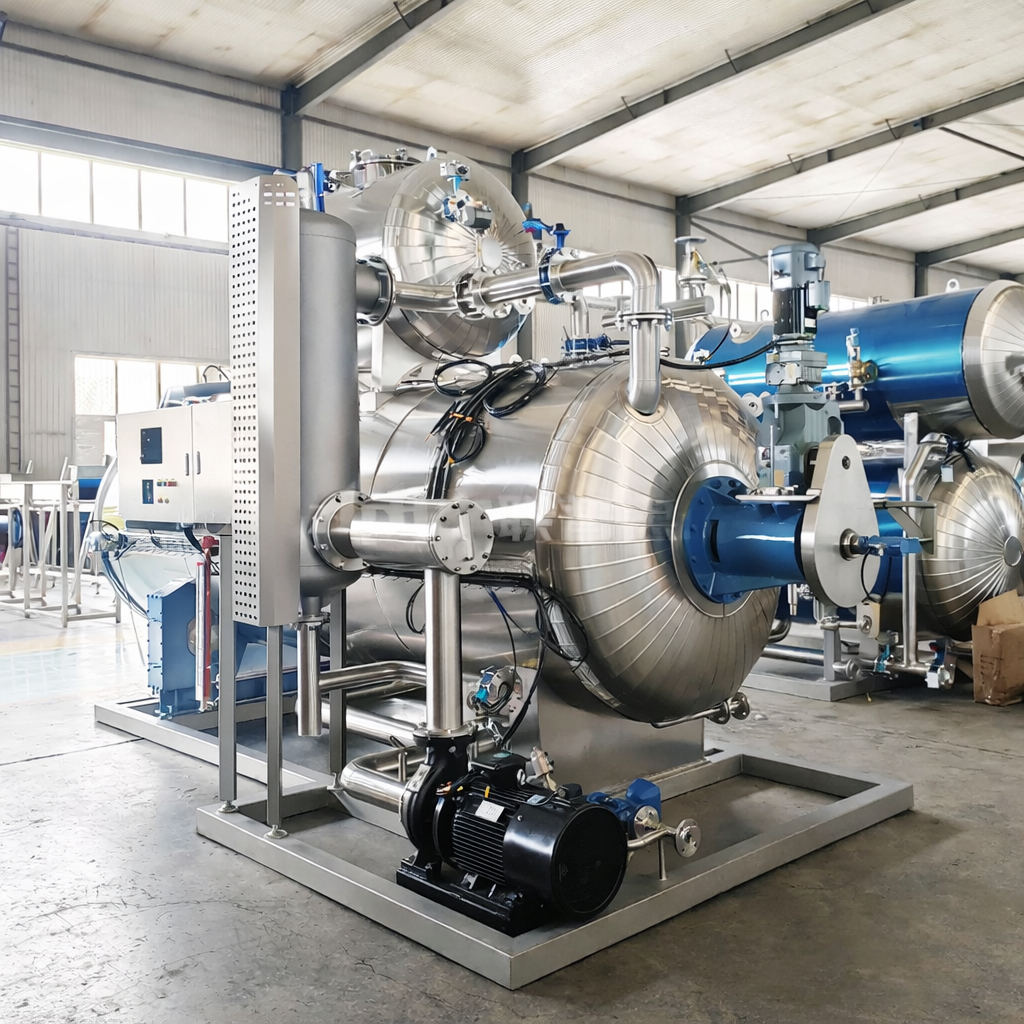

Instant Bird's Nest Rotary Retort Autoclave
The rotary sterilizer for bird's nests is a machine that uses rotation to sterilize these nests, guaranteeing consistent heating and cooling throughout the sterilization phase. This innovative design improves the transfer of heat through convection and accelerates the sterilization time, making it ideal for handling thick semi-solid foods that traditional sterilization methods struggle to heat evenly.
With the rotation, food is kept evenly spread during sterilization, preventing issues like excessive heat in some areas or inadequate heating, which assures complete and effective sterilization. This design significantly reduces processing time for food while enhancing the efficiency and quality of sterilization, positioning it as a vital technological asset in food processing.
1.By turning, the food is spread out evenly during the sterilization process, preventing areas from getting too hot or not hot enough, which guarantees complete and efficient sterilization.
2.It improves heat transfer through convection and speeds up the sterilization process, making it especially ideal for handling thick semi-solid foods.
Parameter:
Specifications | Tray size (mm) | Basket size (mm) | Power kW | Volume m3 | Floor area (length/width/height mm |
DN1200x3600 | 750x760x780 | 750x760x740 | 13 | 4.46 | 5000x2400x2300 |
DN1200x5300 | 790x760x780 | 833x808x790 | 15 | 6.38 | 6700x2500x2700 |
Transform Your Bird's Nest Production with Smart Sterilization
The Instant Bird's Nest Rotary Retort Autoclave is an advanced thermal processing device designed specifically for high-value, delicate items such as ready-to-drink (RTD) bottled bird's nest, retort-pouch bird's nest soups, and sterilized pure bird's nest jars. By utilizing gentle rotation along with accurate temperature and pressure management, this device guarantees optimal commercial sterility while safeguarding the essential nutrients, texture, and visual appeal of bird's nest—aligning with the highest international export regulations (FDA, EU, GACC).
Reasons This Is the Best Option for Bird's Nest Producers
✅ Gentle Yet Comprehensive Sterilization
The distinctive 360° gentle rotary motion provides
even heat penetration without harming the delicate strands of bird's nest. This eliminates cold areas, assures consistent batch safety, and
maximizes the preservation of vital nutrients such as sialic acid.
✅ Fully Automated & Data-Oriented
Our PLC + HMI touchscreen control system provides customizable
sterilization settings. Each cycle is documented for
complete
traceability—crucial for adherence to China’s
✅ Energy & Cost Efficient
Innovative water-spray technology and heat recovery systems cut steam usage by up to 30%, reducing operational expenses while maintaining high productivity.
✅ Built for Large Production Volumes
Engineered for ongoing industrial-scale manufacturing, this autoclave
seamlessly integrates into pre-existing filling and packaging systems,
enhancing your capacity without sacrificing quality.
✅ Hygienic & Sturdy Design
Made from food-grade stainless steel (SUS 304/316) and equipped with CIP (Clean-in-Place) functionalities, the system upholds the highest hygiene standards and guarantees long-lasting reliability.
Technical Highlights at a Glance:
Sterilization Method: Rotary water spray / steam-air blend
Control System: Completely automated PLC with recipe storage and data tracking
Temperature Range: Up to 145°C
Pressure Range: Up to 0.5 MPa
Rotation Speed: 5–25 rpm (adjustable)
Energy Source: Electric, steam or gas options
Compliance: Conforms to ASME, CE, and GB standards
